Descrizione generale:

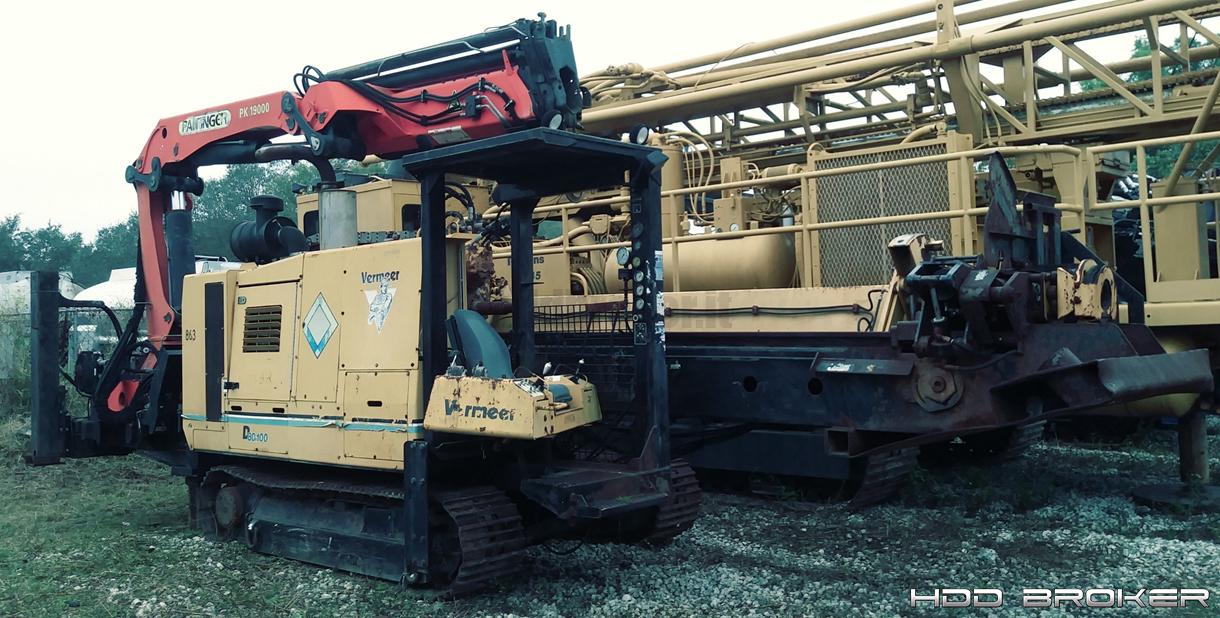

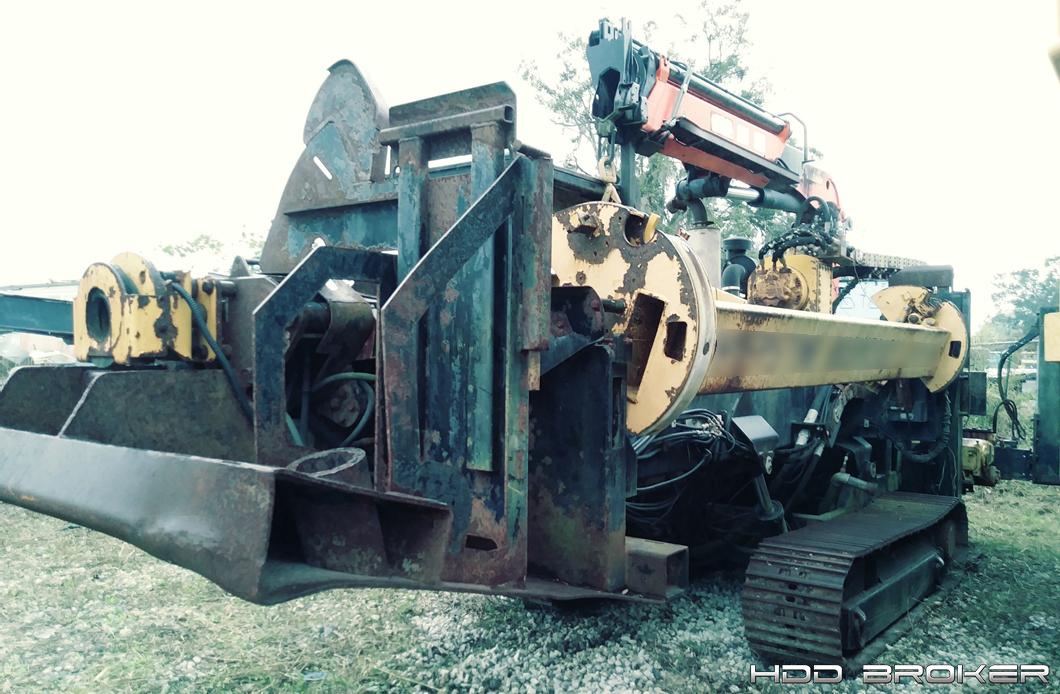

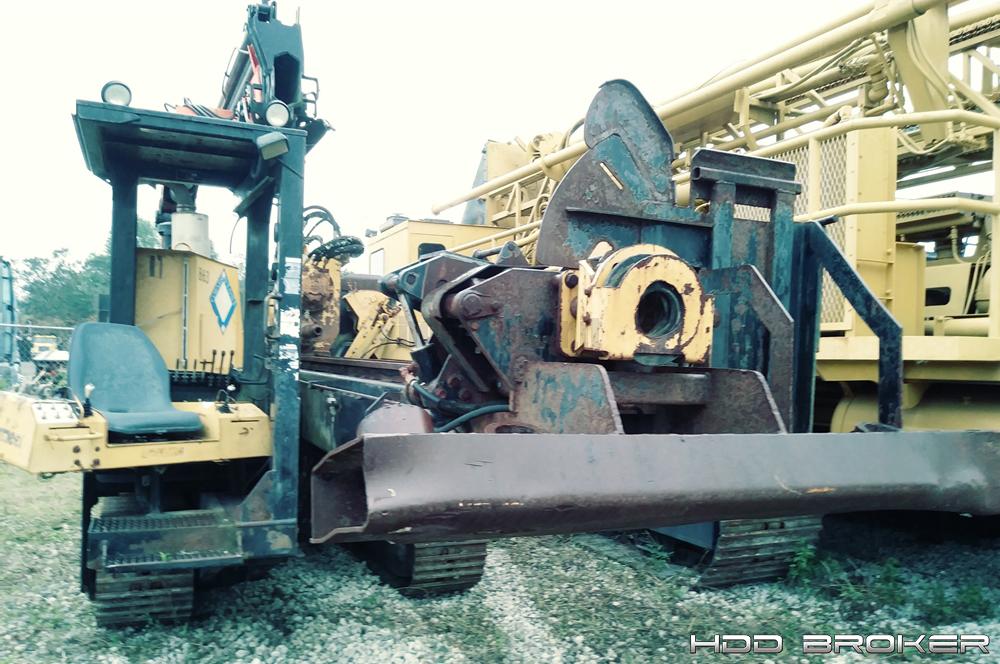

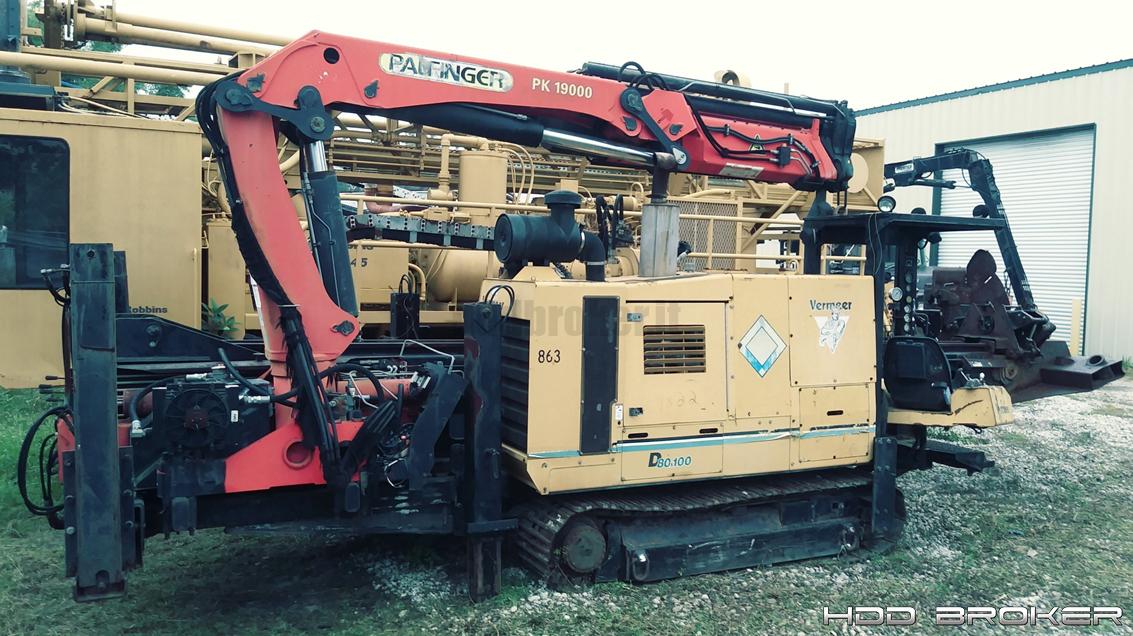

1999 Vermeer D80x100 Directional Drill:

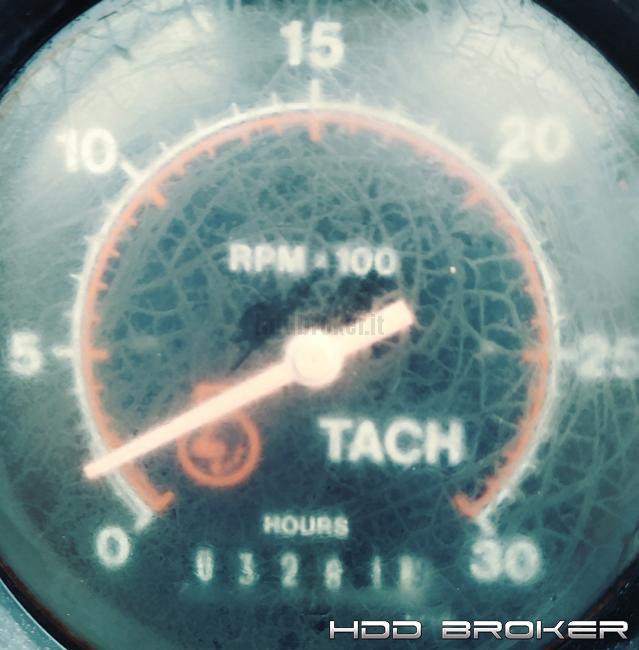

-3,281 Hours.
-200 HP Cummins Engine.

Informazioni aggiuntive:
-Remote Pathfinder

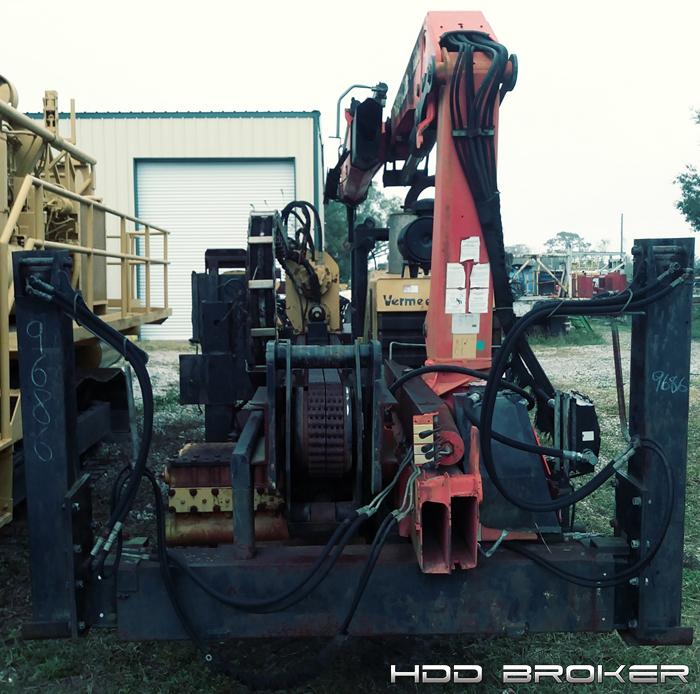

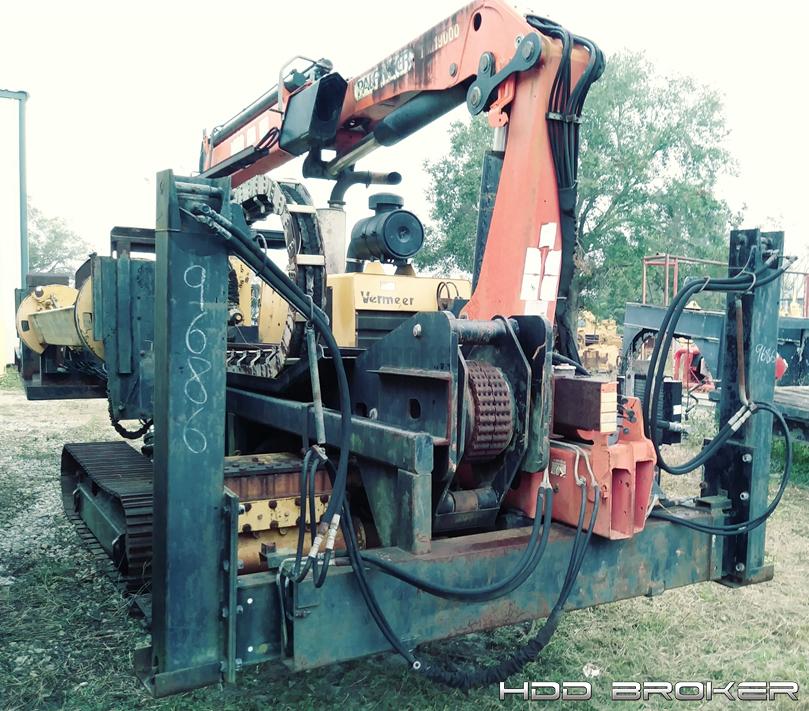

-19,000 Lbs Crane

EQUIPMENT SPECS:
-Fuel Tank Capacity: 62 gal (235 L)
-Hydraulic Tank Capacity: 61 gal (231 L)
-Ground Drive Speed: 3.3 mph (5.3 kmh)
-Max. Height: 11.20' (3.41 m)
-Max. Width: 8.92' (2.71 m)
-Max. Length: 28' (8.53 m)
-Engine. Make and Model: Cummins
-Manufacturer's Gross HP Rating: 200 HP (146 kw)
-Max Flow: 150 GPM (568 Lpm)
-Max Pressure: 1000 PSI (69 BAR)
-Max Spindle Speed: 190 RPM
-Max Spindle Torque: 10,000 ft-lb (13,538 Nm)
-Min Bend Radius: 197.4' (60.2 m)
-Min Bore Diameter: 5" (13 cm)
-Pipe Diameter: 3.5" (8.9 cm)
-Thrust: 50,000 lbs (22,750 kg)
-Pullback: 100,000 lbs (45,500 kg)
-Torque: 10,000 ft-lb
-Weight: 37,200 lbs (16,874 kg)

NOT INCLUDED - Seller has the following items available at an additional cost:

-2000 Vermeer D33x44 Directional Drill
-1999 American Augers DD-140 Directional Drill
-1997 American Augers DD-90 Directional Drill
-1997 American Augers DD-220 Directional Drill
-BMTA 48" Tunnel Boring Machine

Please contact HDD Broker for details and pricing.
